P. 2
COMMERCIAL ELECTRONICS

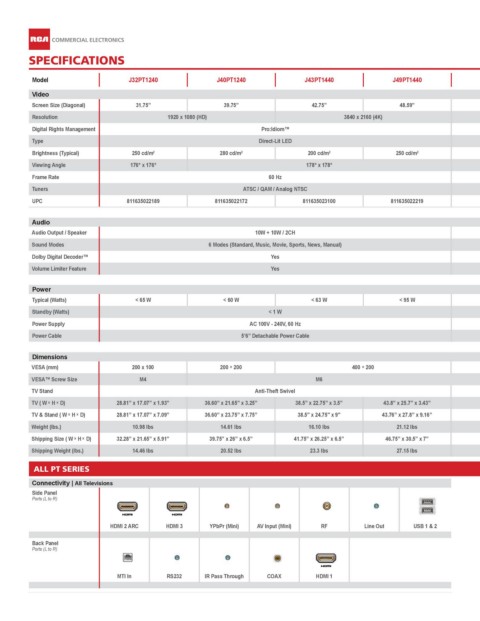

SPECIFICATIONS
Model J32PT1240 J40PT1240 J43PT1440 J49PT1440 J50PT1440 J55PT1440 J65PT1440 J75PT1440 J85PT1440
Video
Screen Size (Diagonal) 31.75” 39.75” 42.75” 48.59” 49.85” 54.5” 64.63” 74.7” 84.83”
Resolution 1920 x 1080 (HD) 3840 x 2160 (4K) 3840 x 2160 (4K)
Digital Rights Management Pro:Idiom™ Pro:Idiom™
Type Direct-Lit LED Direct-Lit LED
Brightness (Typical) 250 cd/m 2 280 cd/m 2 200 cd/m 2 250 cd/m 2 230 cd/m 2 280 cd/m 2 300 cd/m 2
Viewing Angle 176° x 176° 178° x 178° 178° x 178° 176° x 176°
Frame Rate 60 Hz 60 Hz 120 Hz
Tuners ATSC / QAM / Analog NTSC ATSC / QAM / Analog NTSC
UPC 811635022189 811635022172 811635023100 811635022219 811635023711 811635023117 811635023230 811635023209 811635023216
Audio
Audio Output / Speaker 10W + 10W / 2CH 10W + 10W / 2CH
Sound Modes 6 Modes (Standard, Music, Movie, Sports, News, Manual) 6 Modes (Standard, Music, Movie, Sports, News, Manual)
Dolby Digital Decoder™ Yes Yes
Volume Limiter Feature Yes Yes
Power
Typical (Watts) < 65 W < 60 W < 63 W < 95 W < 130 W < 113 W < 230 W < 260 W < 300 W
Standby (Watts) < 1 W < 1 W
Power Supply AC 100V - 240V, 60 Hz AC 100V - 240V, 60 Hz
Power Cable 5’6” Detachable Power Cable 5’6” Detachable Power Cable
Dimensions
VESA (mm) 200 x 100 200 ͯ 200 400 ͯ 200 400 x 200 400 x 400 600 x 400 800 x 400
VESA™ Screw Size M4 M6 M6 M8
TV Stand Anti-Theft Swivel Anti-Theft Swivel Feet
TV ( W ͯ H ͯ D) 28.81” x 17.07” x 1.93” 36.60” x 21.65” x 3.25” 38.5” x 22.75” x 3.5” 43.8” x 25.7” x 3.43” 44.63” x 26.13” x 3.43” 49.2” x 28.2” x 3.5” 57.69” x 33.41 x 3.47” 66.35” x 38.1” x 3.5” 76.2” x 43.94” x 3.66”
TV & Stand ( W ͯ H ͯ D) 28.81” x 17.07” x 7.09” 36.60” x 23.75” x 7.75” 38.5" x 24.75" x 9" 43.76” x 27.8” x 9.16” 44.63” x 30.11” x 9.16” 49.125” x 30.5” x 9” 57.69” x 35.93” x 9.45” 66.35” x 40.9” x 9.83” 76.2” x 46.42” x 12.9”
Weight (lbs.) 10.98 lbs 14.61 lbs 16.10 lbs 21.12 lbs - 29.5 lbs 39.7 lbs 65.4 lbs 128 lbs
Shipping Size ( W ͯ H ͯ D) 32.28” x 21.65” x 5.91” 39.75” x 26” x 6.5” 41.75” x 26.25” x 6.5” 46.75” x 30.5” x 7” 51.2” x 31.5” x 6.8” 55” x 32.125” x 7” 63” x 40” x 9” 74” x 46” x 9” 86” x 52” x 11.5”
Shipping Weight (lbs.) 14.46 lbs 20.52 lbs 23.3 lbs 27.15 lbs - 39.1 lbs 57 lbs 91 lbs 174 lbs
ALL PT SERIES
Connectivity | All Televisions
Side Panel
Ports (L to R)
HDMI 2 ARC HDMI 3 YPbPr (Mini) AV Input (Mini) RF Line Out USB 1 & 2
Back Panel
Ports (L to R)
MTI In RS232 IR Pass Through COAX HDMI 1
